Name: Rancilio Epoca One-Group Thermistor Retrofit Kit (2007 And Later)
Brand: Rancilio
SKU: RKIT7
Availability: InStock

Description

This is a special order item and will ship separately. Please allow 6 – 10 business days (typically) for the item to be processed prior to shipping.
This kit replaces part #34-200-114 from the Rancilio Epoca E-1 versions post-2007 models. For the older, pre-2007 Epoca models, do not order this kit.
Part #: 99KIT-THERMISTOR.

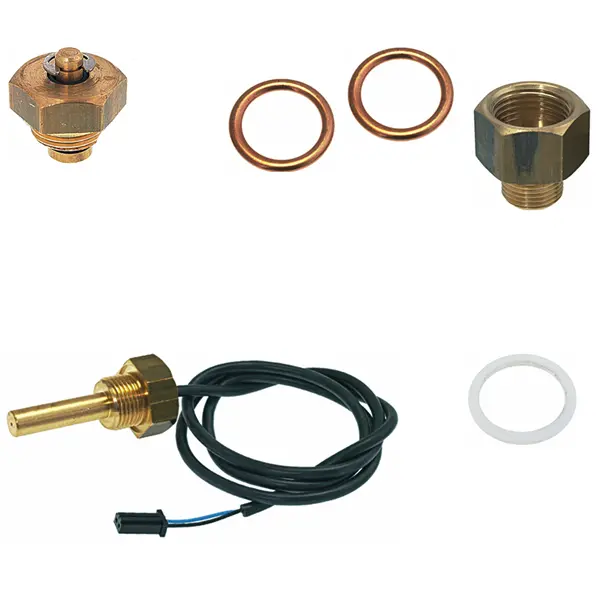

Thermistor Retro-Fit Kit Includes;

(F_201) 3/8 Copper Gasket.
(R_626) Rancilio Classe/Epoca Temperature Sensor Probe.
(V_324) 3/8 F x 1/4 M Fitting.
(GUAR21682) PTFE Gasket for 3/8 Fittings.

How to Replace;

Step 1.) Remove the existing transducer from the machine (not the pipe, just the transducer). This will leave you with an open pipe end.

Step 2.) Remove the anti-siphon valve (Part R_415 – not included – the brass part on the right side of the boiler as you face the front with the little pin sticking out and a c-clip on top of it) from the boiler.

Step 3.) Now thread the adapter nut (part R_1282) and anti-siphon valve together using the two copper gaskets (part F_201). The two copper gaskets are used in between the anti-siphon valve and the adapter fitting (no gasket is required in between the assembled parts and the boiler).

Step 4.) Thread the anti-siphon/adapter assembly onto the open pipe end where the transducer was.

Step 5.) Lastly, thread the new supplied temperature probe (part R_626) into the opening in the boiler where the anti-siphon valve was, using the supplied PTFE gasket (part R_75).
